Maintenance of Existing Facade (Exterior of Building)

How to have Maintenance of Top Hung Openable Windows at Your Facade?

Facade Maintenance

Top Hung Openable Windows

  • Before Maintenance:

  1. Facade Inspection: We had a site survey and checked all elevations of the Facade from inside. We checked each and every window by opening it and closing it again till it was locked.
  2. Planning: We also decided on a strategy for this maintenance activity means using a cradle by placing scaffolding or doing work from inside. (For one of the elevations it is impossible to keep a cradle at the ground because space was not available.
  3. Sequence Decision: We also decided on the sequence of work based on risk, and minimum shifting of a cradle.
  4. Site Survey Submission: We submitted our report with elevation drawings having to mark windows to the client so he can decide and finalize the number of windows to be repaired based on importance according to him and the budget decided for this work.

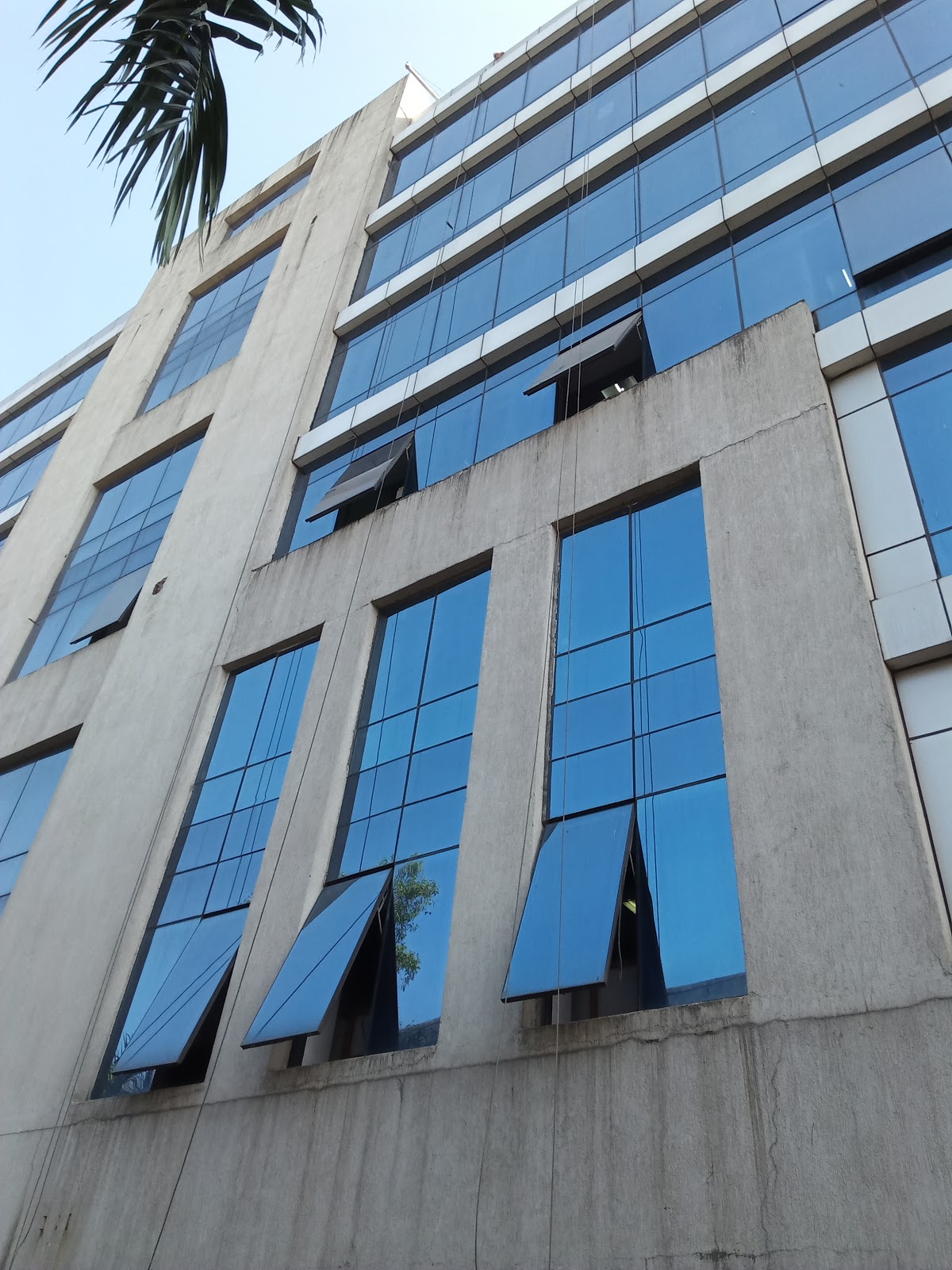

  5. The following are the typical images of Windows before maintenance work. Some of the Windows were tied with ropes, some were fixed by screws and some windows were tagged with a level of 'NOT TO OPEN'.

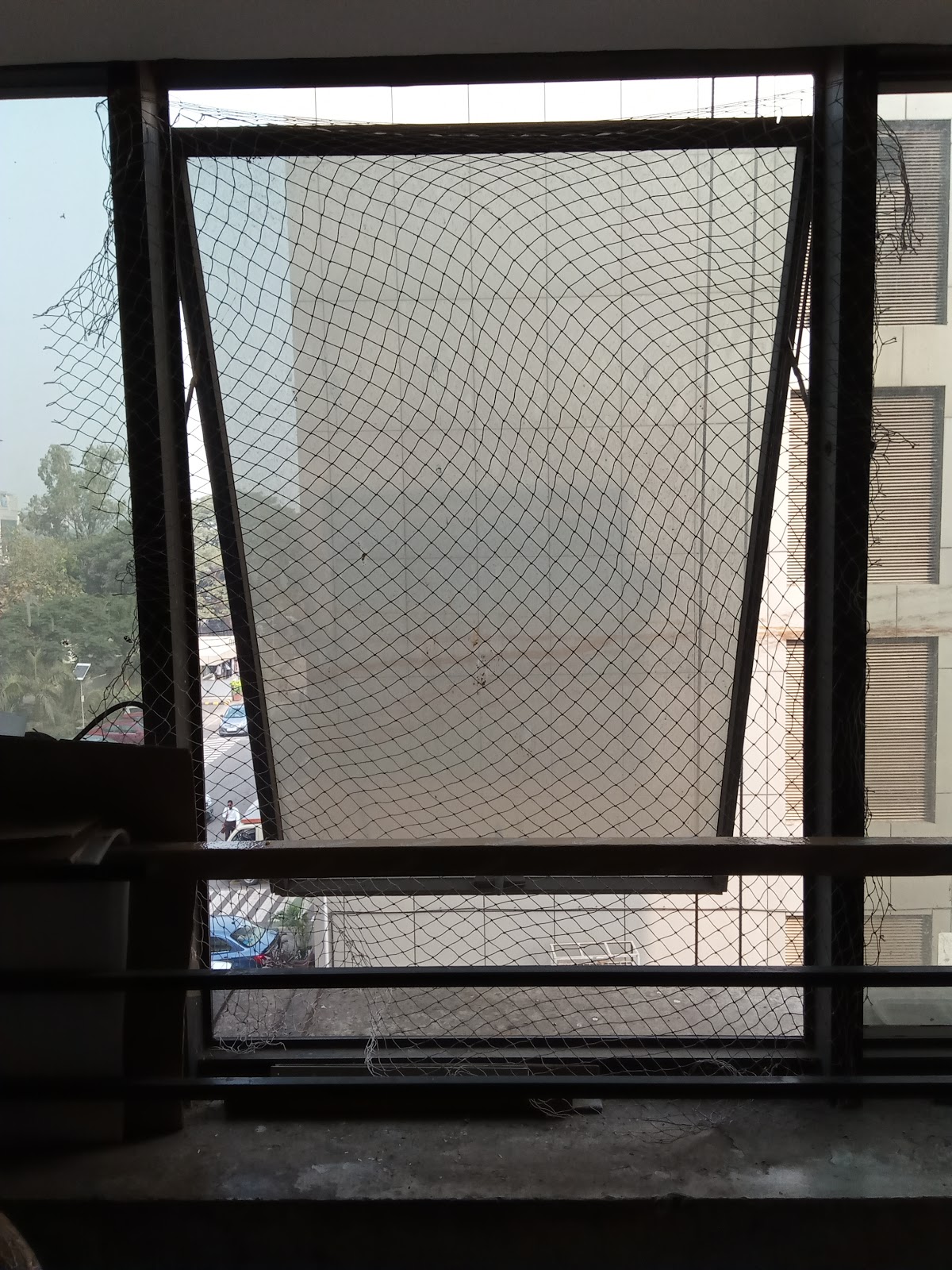

Facade Maintenance-Window Tied with RopesFacade Maintenance-Window with Net as Restriction

Facade Maintenance-Window MIsaligned

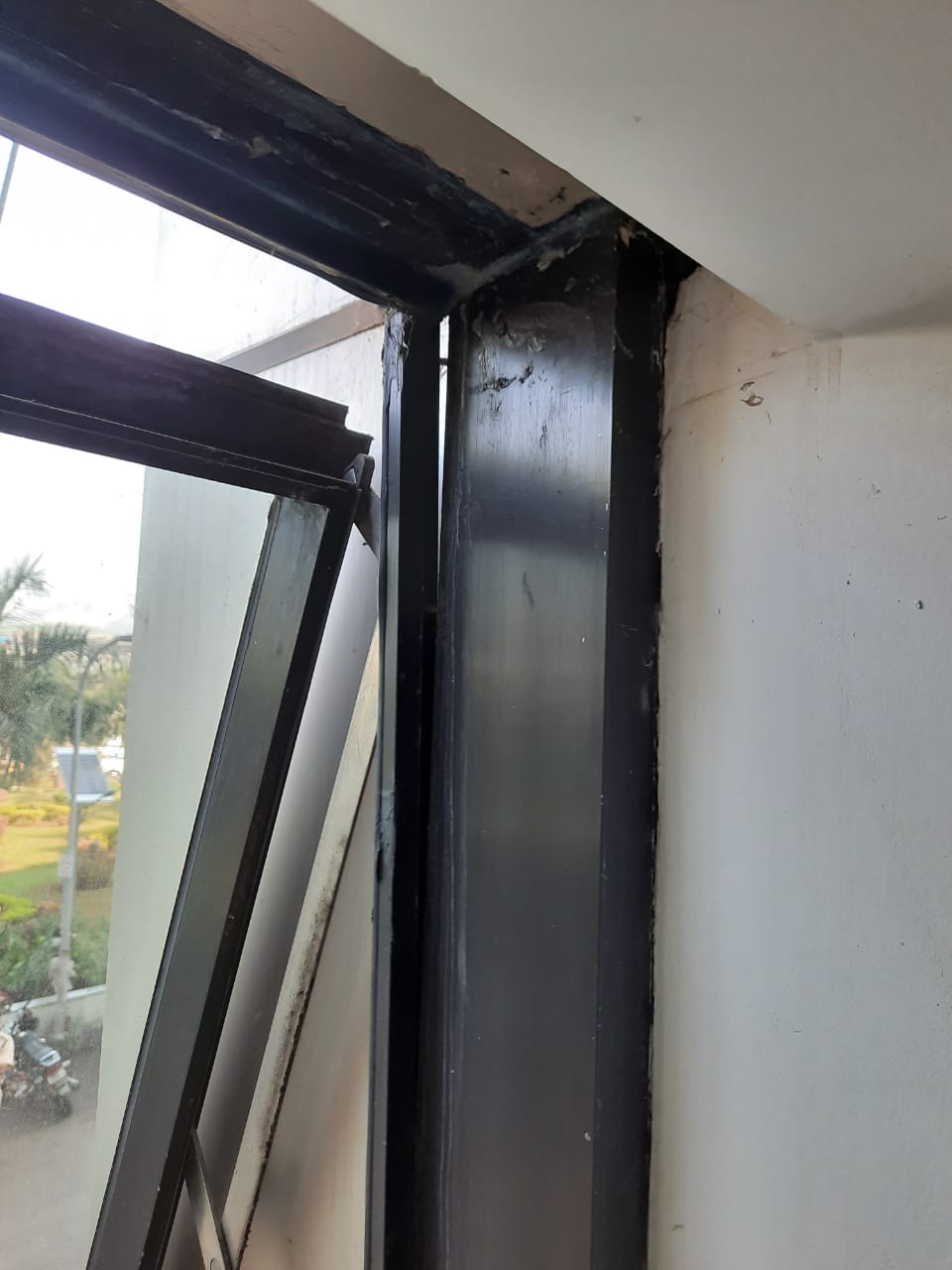

In addition to the above cases, we noted that the required number of screws were missing in hinges, the openable frame was moving out at the top edge while closing the panel at the bottom, the window was rubbing to adjacent ACP Panel, etc. was identified after teaching to the level of Window by using Cradle ( installed and Audited for Third-Party).

  • Installation and Third-Party Audit of Gandola:

 We installed 16 16-foot length Cradle having a capacity to withstand a load of 800 Kg. calculating the weight of the Panel ( 130Kg.) and kept it suspended from the Terrace where the Counterweight of 1000 Kg. was kept.
Installation of CradleInstallation of Counter Weight

Images/ Challenges while doing Inspection and repair work

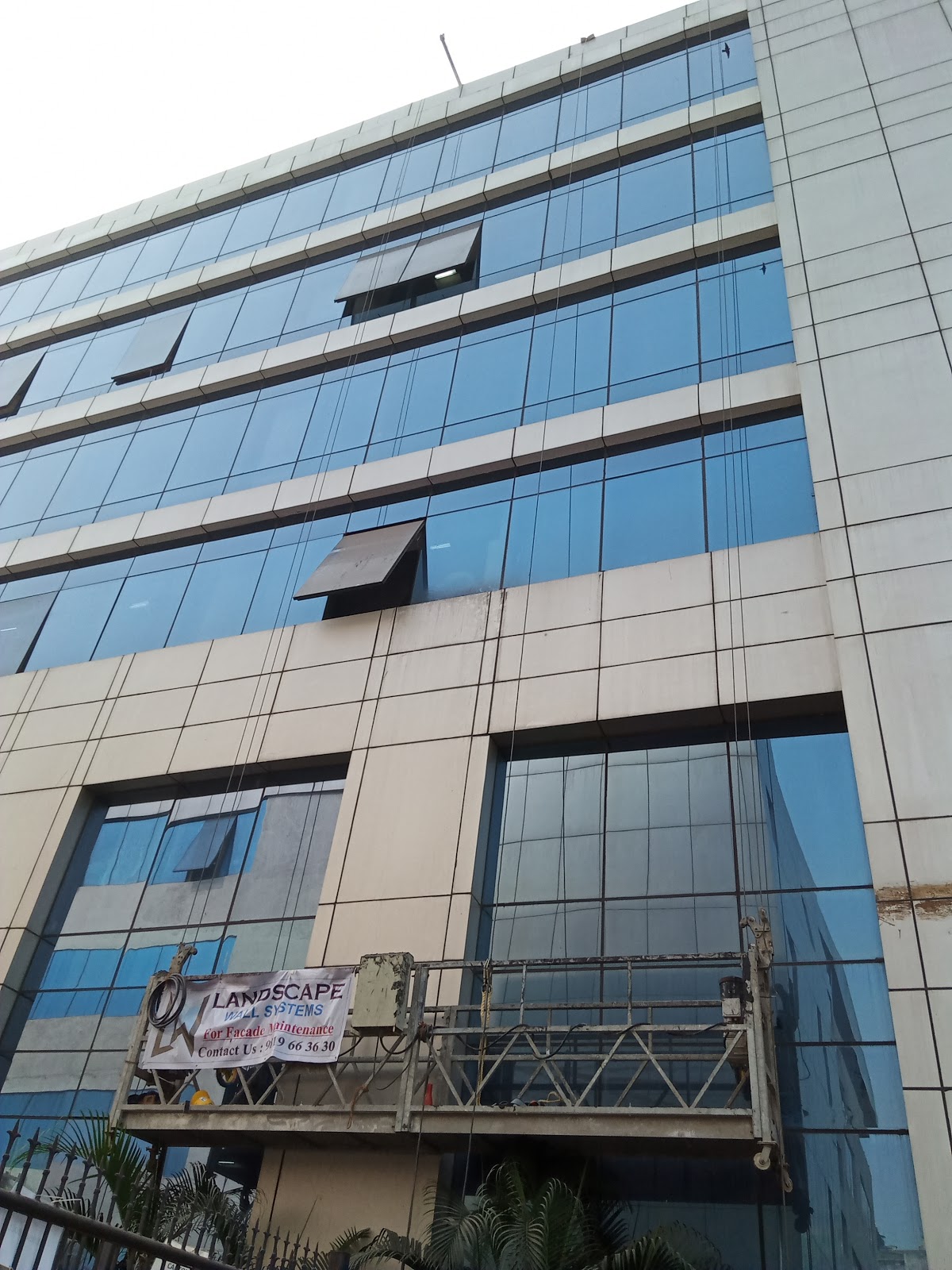

Facade MaintenanceFacade Maintenance

Facade Maintenance at Office
Inadequate space

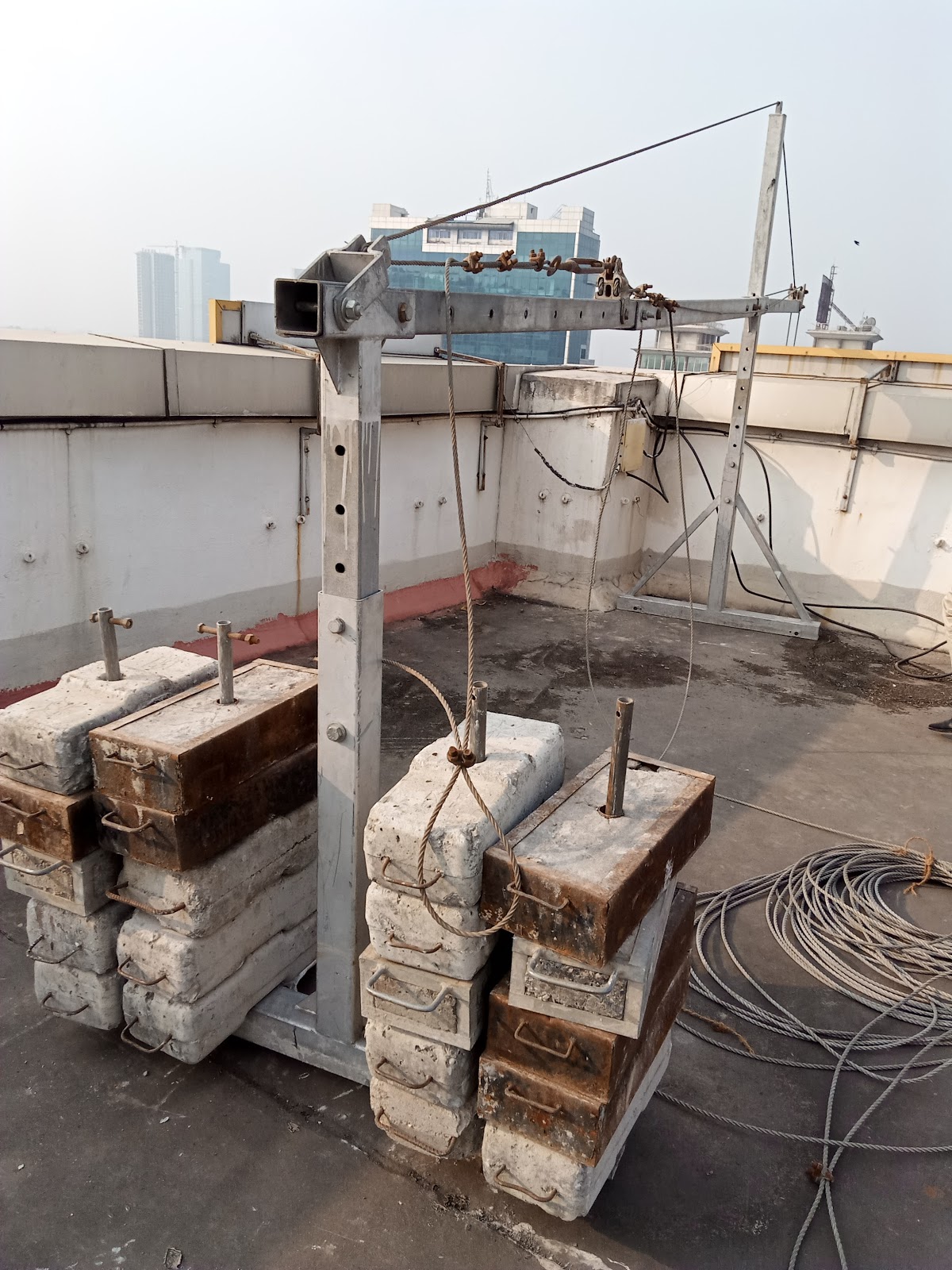

Facade Maintenance -Counter Weight Installation at Terrace
Uneven Level at Terrace for Counterweight

Facade Maintenance-Keeping Cradle away from GlassFacade Maintenance-Keeping Cradle away from ACP Facade

  • Report Submission of Completed Work

Following are some of the drawings indicating Windows for which Landscape Wall Systems completed Maintenance Work
Facade Maintenance-Acad Drawing Report
Project Report-Facade Elevation-Maintenance Markings

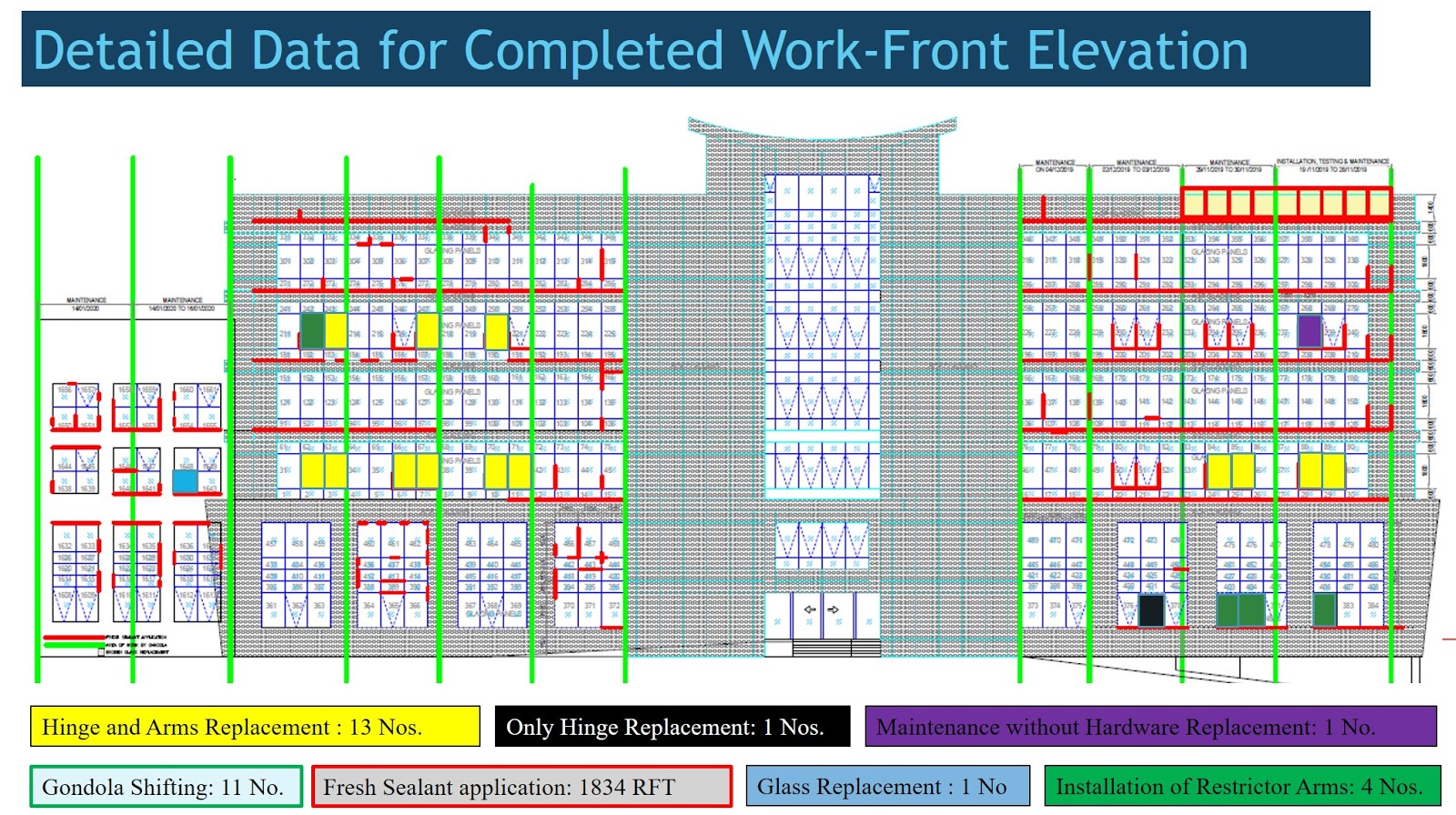

In the image shown above and below; Hinges were replaced and Restrictor Arms installed for Window marked YELLOW, only Restrictor Arms were installed for Window marked GREEN, only Hinges were replaced for Windows marked Black and re-alignment was done for Windows marked Violet. GREEN lines indicate the possible portion of Elevation covered by the Cradle. Red lines indicate Fresh Sealant application work and Glass replacement work carried out by Landscape Wall Systems. ( explained in another post).

Project Report-Facade Elevation-Maintenance Markings
Including the above activities, we also added SS316 screws wherever missing, reduced the opening angle of Windows wherever requested by the client, resolved the locking problem without replacing hardware, had lubrication, Labeling from the inner side for identification of work.
Facade Maintenance-Excess Opening of WindowsFacade Maintenance Dislodged Frame

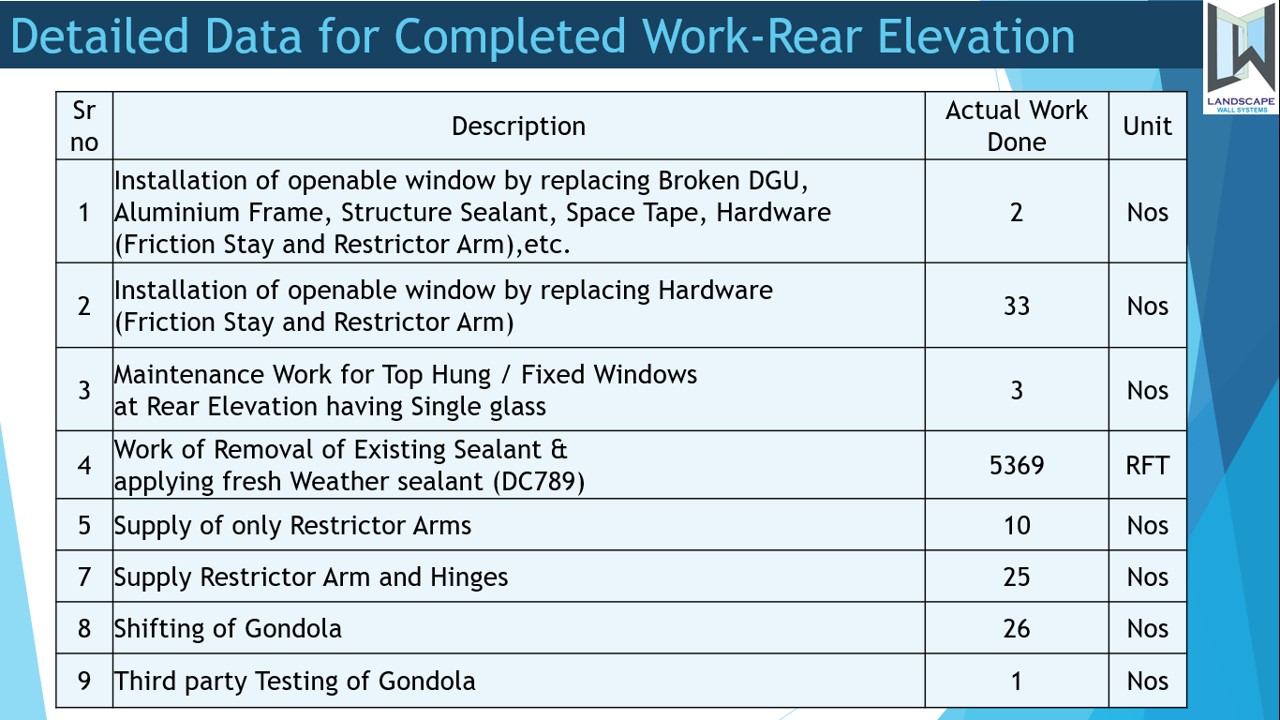

  • The following Table shows the Total Quantum of Work involved in a Project

Facade-Maintenance-Project Report
Facade-Maintenance-Project Report

Let us know if you are facing any problems with your Existing Facade.
We will be happy to serve you.

-Pankaj Ghare.
Director,
Landscape Wall Systems
9819 663 630
